Digital Clock Clock 24

🕐 Open the live site → tuct.github.io/esphome-lvgl-clock

The whole wall running in your browser, the pattern editor, and every page below with search. Same engine as the firmware — nothing to install.

A physical ClockClock 24 — a digital clock built out of twenty-four little analogue ones, where the hands sweep into position to form the digits and spend the time in between doing something else entirely.

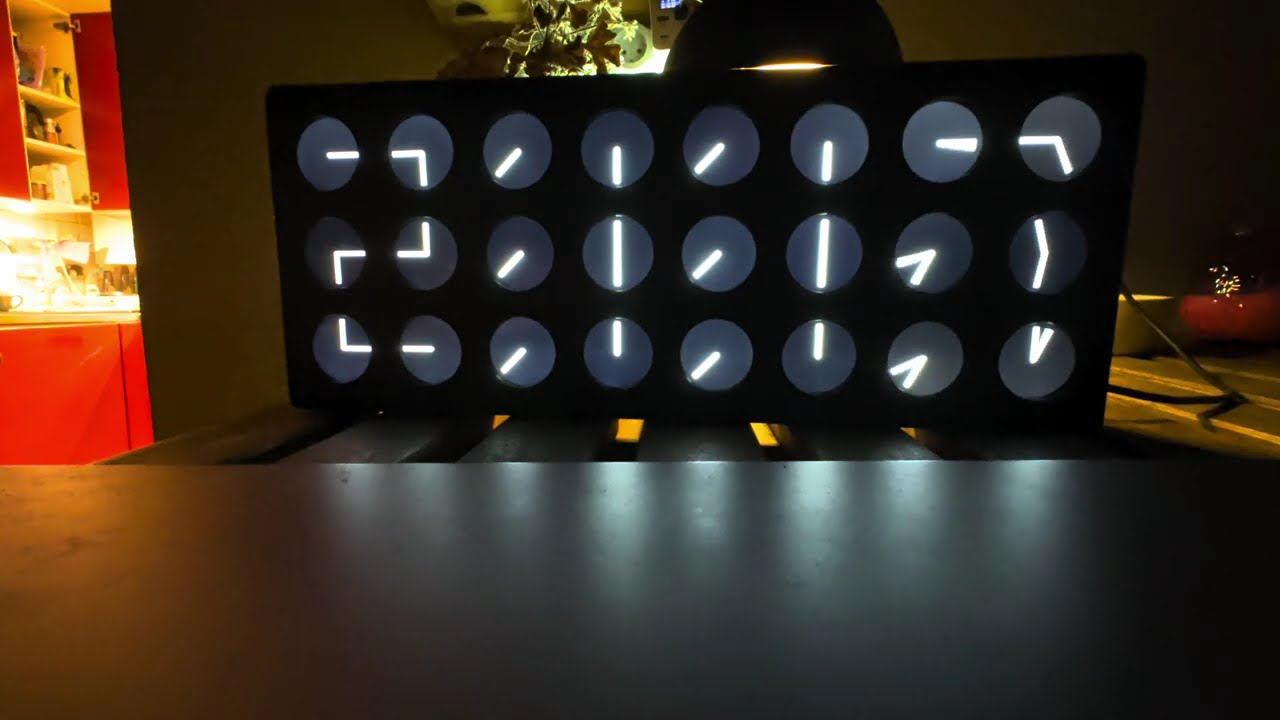

ClockClock 24 — the full 24-screen wall running

↑ The finished wall, running. Watch it.

The original is a beautiful, expensive piece of kinetic art. I fell for the concept years ago and started coding a version for an ESP32 — first as something to run full-screen on a tablet, then on four rectangular panels, one per digit, where the gaps between the digits ended up wider than the gaps between the clocks inside them. Getting rid of that gap meant the crazy option: 24 round displays, one per clock. It worked. About €210 of panels and eight £5 microcontrollers, driven by ESPHome, and it hangs on two screws.

What you can do with it

Run a ClockClock 24 — on real hardware with 24 round panels, or on any screen you can point at a URL. Both run the same engine, so they are the same clock rather than two impressions of one.


Run it on a screen Tablet, Home Assistant dashboard, any browser. No hardware, nothing to install
Build it — 24 round screens The real thing. 24 panels, 8 boards, no gaps. Running on hardware
Build it — 4 screens A sixth of the displays, at the cost of a gap between the digits
Control it from Home Assistant The add-on: mode, colours, speeds, cycle list, automations

Make it do something new — the wall breaks into a choreography every minute, and you can draw your own without compiling or flashing anything.


What it does — modes and patterns The eleven built-in choreographies, and how patterns work
The pattern editor Draw one, press Send, 24 clocks run it a second later
Try it now → The whole wall in your browser, running the firmware’s own engine

Underneath it is all one ESPHome widget — lvgl_clock.

Run it from Home Assistant

The add-on is how a finished wall is meant to be used. One sidebar item, and it finds your master by itself.

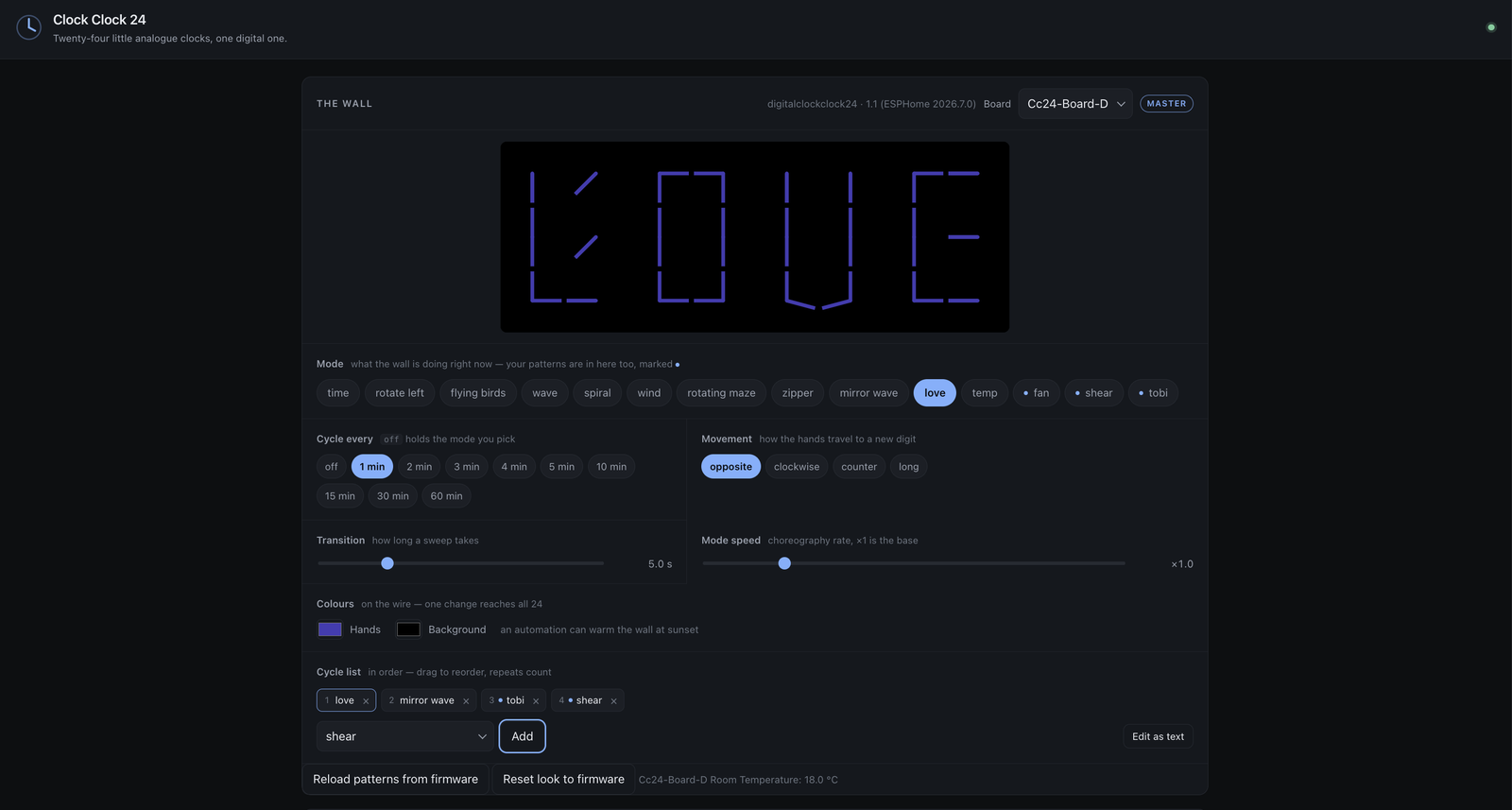

↑ Driving a real wall. The preview is the wall’s own engine, so it is showing what the wall is showing — here, love. fan, shear and tobi are patterns drawn in the editor and sent to the master; they sit in the Mode list beside the built-in choreographies and drop into the cycle list like any of them.


Drive it Mode, cycle list, cadence, movement, sweep length, choreography speed, hand and background colour — live, on the wire, all 24 clocks in one packet
Draw for it The pattern editor, wired straight to a slot on the master: pose the hands, set each one turning, press Send
Automate it Every control is an ordinary entity, so amber and slow at sunset is two service calls
Show it A dashboard card, and full-screen pages for wall tablets — with or without hardware

Send is the whole point: the master saves the pattern to flash, pushes it down the sync bus, and 24 real analogue clocks are running it a second later, with nothing recompiled and nothing reflashed — not even the master. That is what the single-master design is for.

Every control is an ordinary Home Assistant entity, so the wall automates like anything else in the house. Warming the hands to amber at sunset and slowing the choreographies down is two service calls:

- service: text.set_value
  target: { entity_id: text.cc24_board_d_hand_colour }
  data: { value: "#ff7a2f" }
- service: number.set_value
  target: { entity_id: number.cc24_board_d_mode_speed }
  data: { value: 0.6 }

Because the colour goes out as one broadcast, all 24 clocks turn together on the same frame rather than sweeping across the wall board by board.

→ Add-on and cards · Full documentation

The build

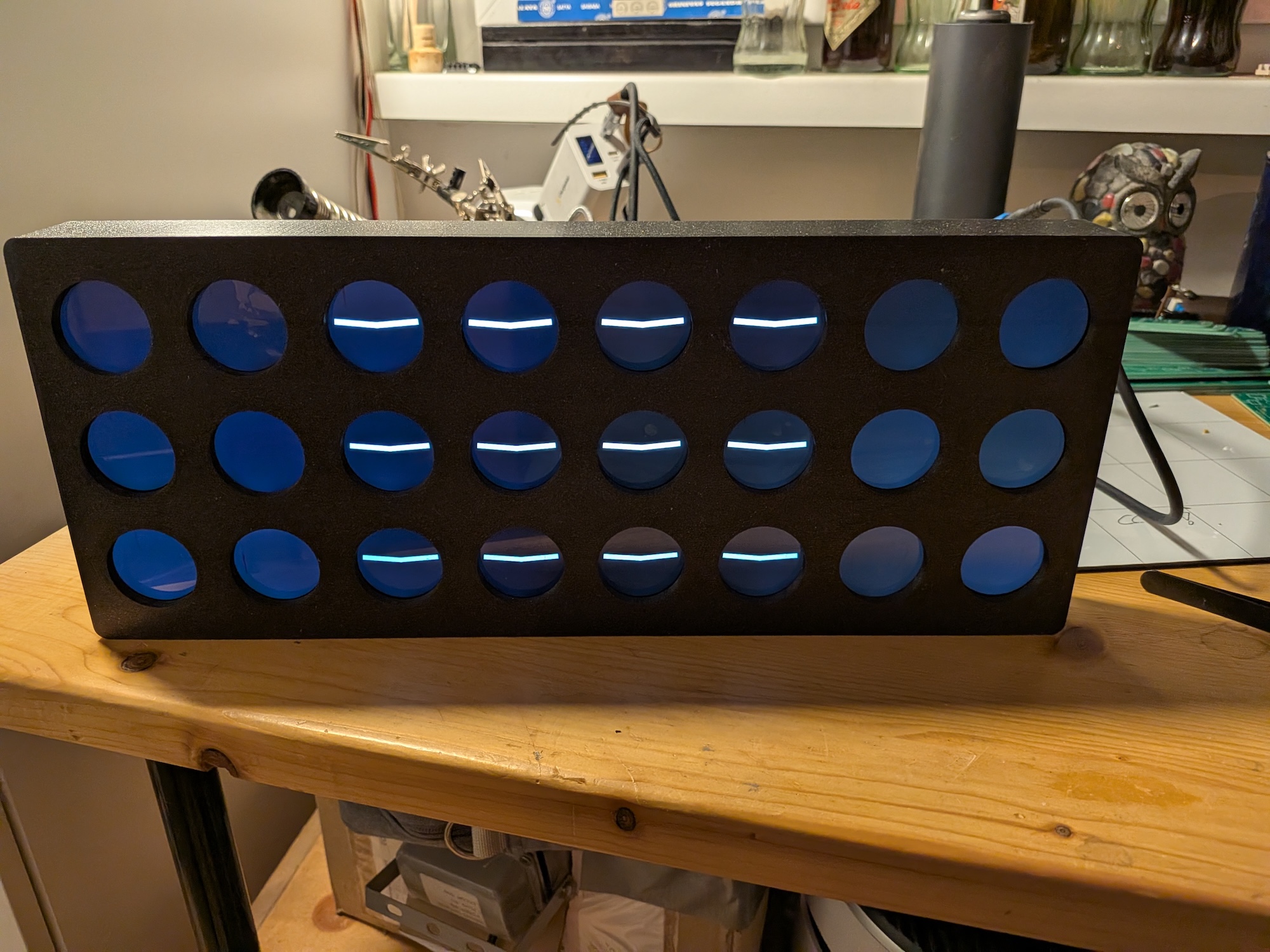

Twenty-four 1.28″ round panels on eight XIAO ESP32-S3 boards — one board per column of the wall, three panels each. Evenly spaced across all 24, so HH:MM reads as a single continuous field of clocks, which is the original’s whole point.

One board has Wi-Fi and SNTP and broadcasts the time down a one-wire UART bus; the other seven listen. That is what keeps 24 clocks on the same millisecond — and it means only one board is ever reflashed to change what the wall does.


Cost €207 – €374 for the whole wall
Size ≈ 27 × 13 cm, 730 g assembled
Effort A project. One custom PCB, 24 panels to mount, 8 boards to flash
Status Running on hardware — all eight boards built

→ The full build — costed BOM, carrier PCB and gerbers, wiring, assembly order, bring-up and power.

The cheap way in

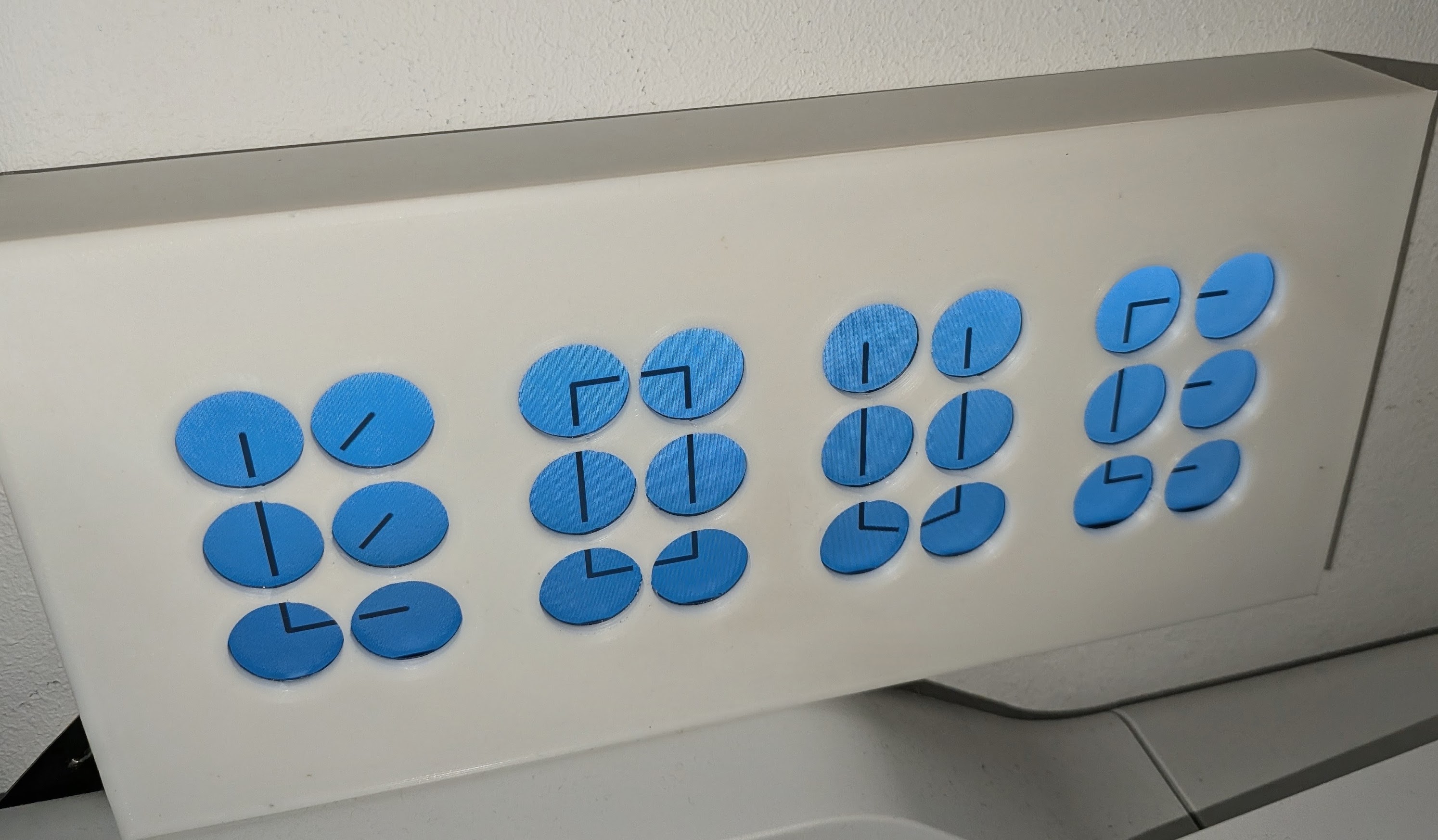

A printed mock-up of the layout — four digit blocks, and the gaps between them.

The same clock on four rectangular panels and two boards. Each panel draws a whole digit rather than one mini-clock, so it is a sixth of the displays and an afternoon rather than a project. The trade is the gaps: four blocks of six instead of one grid of 24.

Roughly €70 – €160, ≈ 17–20 × 6–7 cm. Builds and validates; untested on hardware.

→ The 4-screen build

What it does — the modes

Telling the time is the easy part. Every minute the wall breaks into a choreography for 35 seconds and then sweeps back:


wave Each clock is one stroke; the turn rolls across the wall left to right, holding a fixed 15° fan
wind A column is one stalk. A gust shears its two free ends past each other while the middle stays put
rotating_maze A chevron lattice that eases almost to a stop every time it lands on an aligned figure
zipper A front runs across a field of diagonals, unzipping each column into mirrored chevrons
mirror_wave Vertical strokes scissor open, mirrored about the centre, spreading outwards
spiral · flying_birds · love · temp …and the rest

And a pattern is a twelfth thing the wall can do that is data rather than code — 24 poses and motions you draw yourself, sent over the network with nothing compiled.

→ All of them, in detail

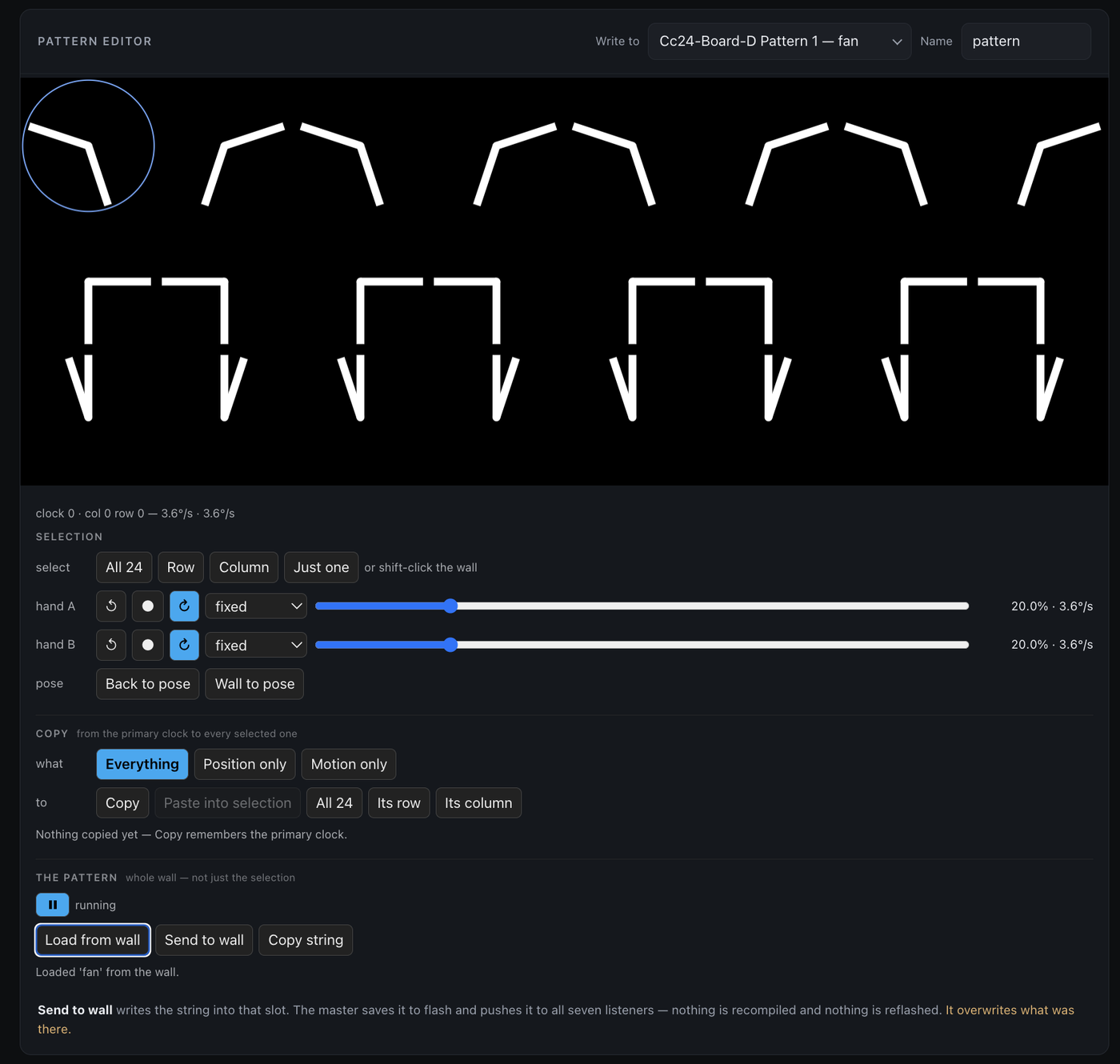

↑ The pattern editor, editing fan after pulling it back off the wall with Load from wall — the slots are read as well as written, so a pattern already running is a starting point rather than something you had to keep a copy of.

One rule holds everywhere: it is an analogue clock, so it cannot jump. Every mode is a continuous function of time, and there is a regression check that drives all of them through their whole lifecycle to prove it.

The component underneath

All of this is one ESPHome LVGL widget, lvgl_clock. It draws a whole ClockClock 24 on a single screen out of the box — partial: is what slices the same 24-clock choreography across many displays instead. It also does four other clock styles, if you just want a clock on a panel:

→ Component reference · examples/ — ready-to-flash single-board configs · Writing a choreography in code
